Any Clk Devices for easy IBM XT, 286, 386, 486 Overclocking Underclocking

This is a must have tool for Retro System Overclockers! It allows you to set the main clock of the system at any rate. Can generate any frequency in the 4Mhz to 200Mhz range. Uses an external reference crystal (2Mhz - 33MHz). The device multiplies the reference frequency and generates the output. The multiplier has 9 options and is selected using two jumpers (each has 3 possible positions).

TTL and CMOS compatible.
3.3v and 5.0v compatible!
Short circuit current: ±70ma.
Output Impedance: 20Ω
Rise/Fall time: 1ns (Typ)

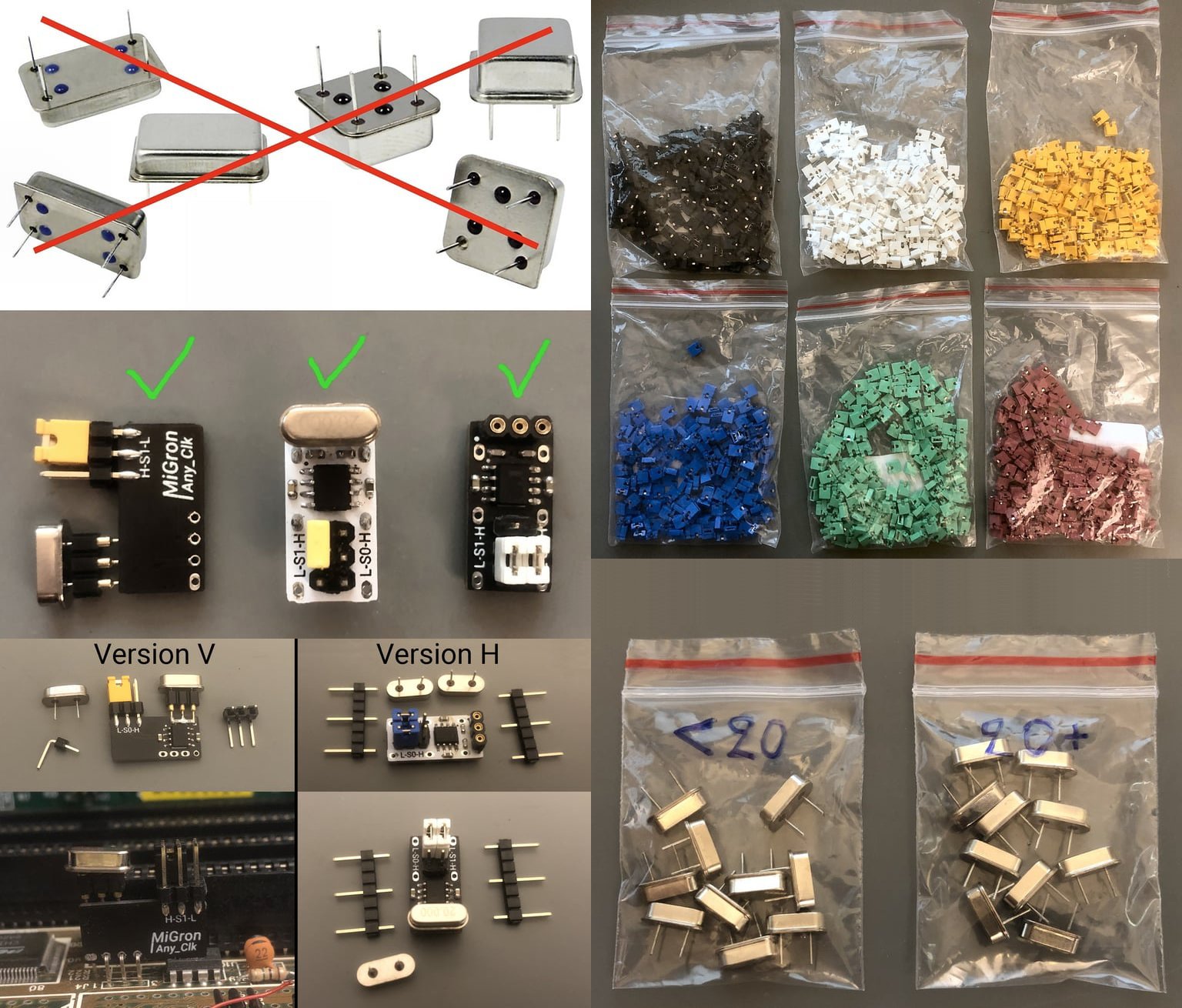

There are two types of this device!

Version H: Designed to be used in Horizontal Orientation. Ideal Drop-In replacement for DIP-8 and DIP-14 oscillators! (3.3v or 5.0v). Can also be glued on the M/Bs then connected with short wires. Also useful for prototyping with FPGAs on breadboards, PCBs, development boards.

Version V: Designed to be used in Vertical Orientation. Ideally placed as a replacement of a three position jumper. This Jumper needs to have a GND-Select-VDD configuration and will be set permanently to GND. Finally the output should be connected with a wire.

With the device you get two basic crystals for free, one 4.0Mhz and one 20.0Mhz. With these you can generate 18 different frequencies in the 8.0MHz - 160.0MHz range.
-> Full packet of Extra crystals is now available!

-> Color Options:
Version H is Available in Black, White, Green, Blue, Purple and Red color. Version V only in Black.
If you want an other other color, this is possible but will take a month to provide this to you.
There are also 8 color options for the jumpers: Black, White, Yellow/Orange, Real Yellow, Blue, Green/Light, Red/Burgundy, Real Red. Just tell me your preference.

*** Full manual of the Any Clk device ***

Pricing:
1pc -> 30e
2pcs -> 55e
3pcs -> 75e (25e per pc)

-> To order send me a message.
-> Just write your location and what you want.
-> I am shipping worldwide! (From Europe - EU)
-> I will calculate the shipping cost and send you the PayPal invoice.
-> Shipping costs are combined for multiple Items.
